Toolbox — All-In-One Sound Polisher
Sharing a new effect — Toolbox is a 7-module channel strip that lives inside your Endless. It chains together the most common sound-shaping tools into one patch with individual bypass per module.
Signal Chain
Input → Gate → EQ → Tube Sat → Body Sim → Compressor → Room Reverb → Stereo Width → Output

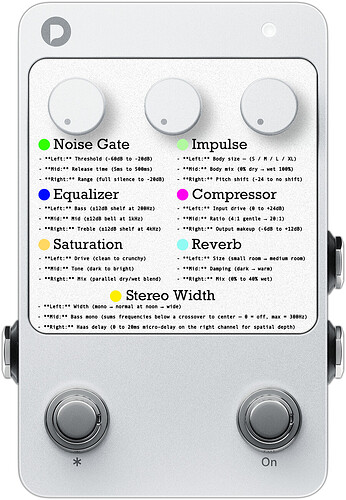

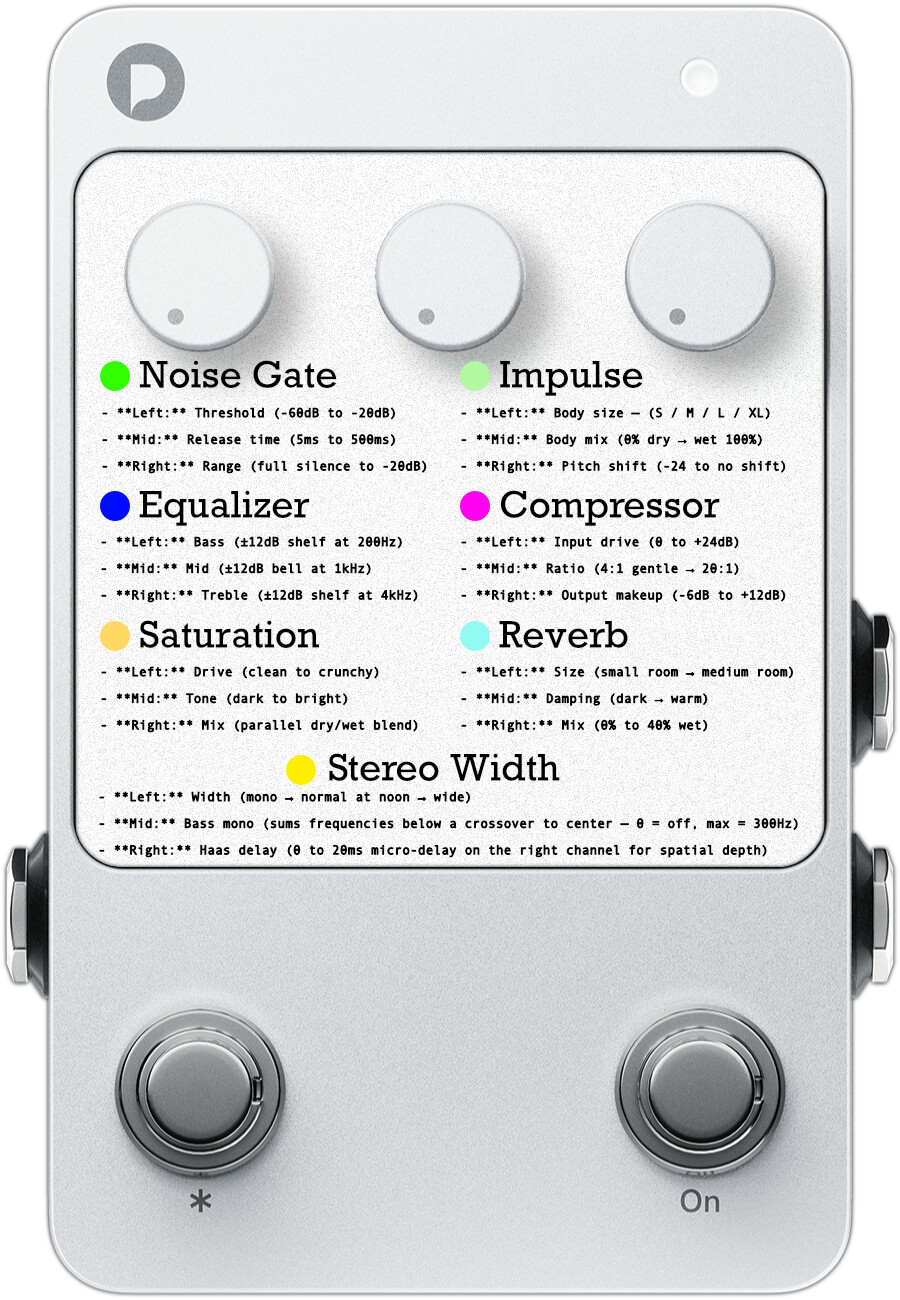

Each module has its own page with 3 dedicated knobs. Tap the footswitch to cycle through pages, hold to bypass or re-enable the current module. Settings are stored independently per page.
Page 0 — Noise Gate
Cleans up hum and noise before anything else touches the signal.
Left: Threshold (-60dB to -20dB)
Mid: Release (5ms to 500ms)
Right: Range (full cut to -20dB floor)
Page 1 — 3-Band EQ
Low/mid/high tone shaping. Noon on all three = flat.
Left: Bass (±12dB shelf at 200Hz)
Mid: Mid (±12dB bell at 1kHz)
Right: Treble (±12dB shelf at 4kHz)
Page 2 — Tube Saturation
Even-harmonic warmth with parallel dry/wet blend.
Left: Drive (clean to crunchy)
Mid: Tone (dark to bright)
Right: Mix (dry/wet blend)
Page 3 — Body Sim
IR convolution with 2048-tap acoustic body resonance profiles. Makes electric instruments sound more acoustic.
Left: Body size — S / M / L / XL (four resonance profiles, smallest to largest)
Mid: Body mix (dry to full body)
Right: Pitch shift (0 to -24 semitones, snaps to whole semitones)
Page 4 — Compressor
Fast FET-style compression for controlling transients.
Left: Input drive (0 to +24dB — more drive = more compression)
Mid: Ratio (4:1 to 20:1)
Right: Makeup gain (-6dB to +12dB)
Page 5 — Room Reverb
Subtle natural space. Mix is capped at 40% to keep it tasteful.
Left: Size (small to medium room)
Mid: Damping (bright to dark)
Right: Mix (0% to 40%)
Page 6 — Stereo Width
Spatial enhancement using mid/side processing.
Left: Width (mono at zero, normal at noon, wide at full)
Mid: Bass mono (sums low frequencies to center, off to 300Hz)
Right: Haas delay (0 to 20ms on right channel)
Controls
Tap footswitch — next page
Hold footswitch — toggle current module on/off
All modules start enabled with sensible defaults
Knob values are remembered per page
