Hello,

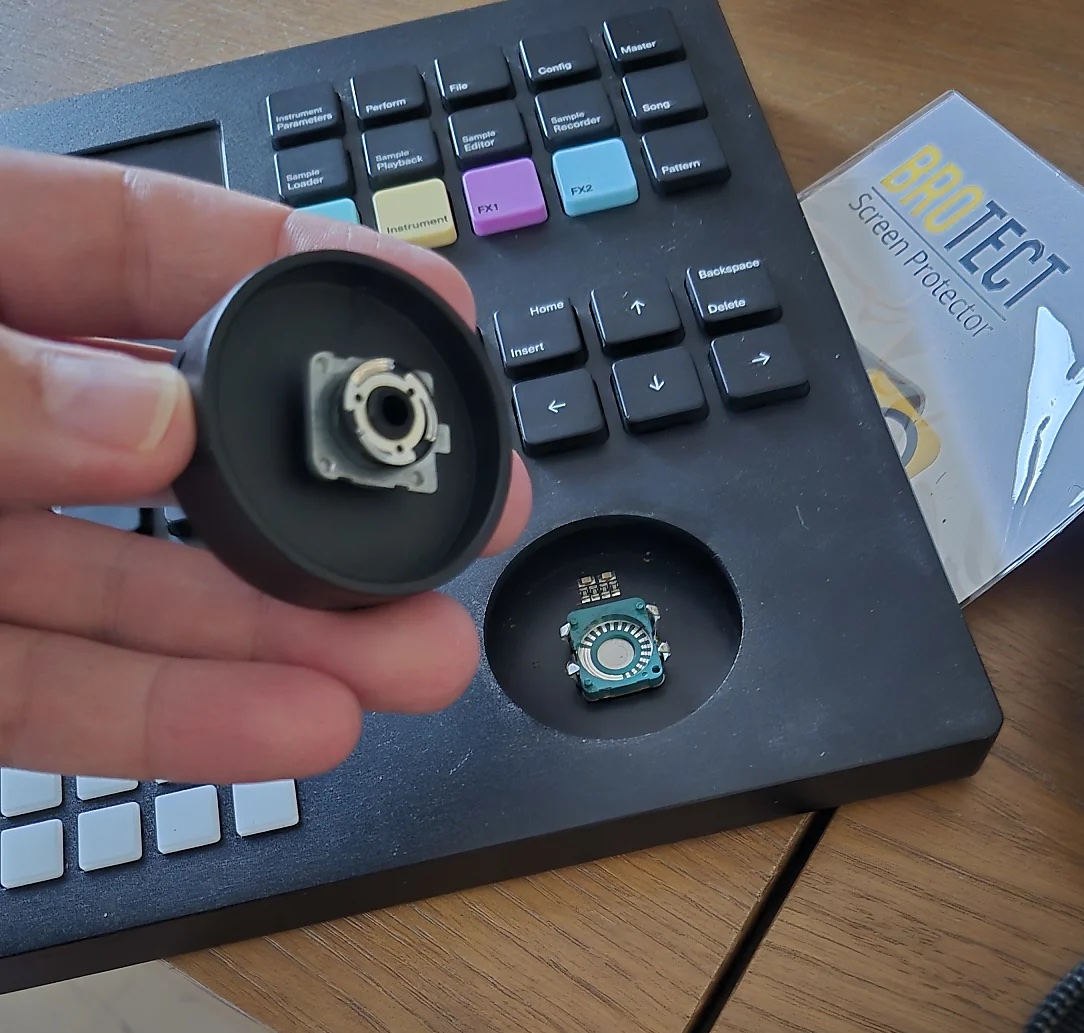

I have a trouble with the polyend tracker encoder, I don’t have a clue how to put it back in is slot. Could you help me, please !!!
Regards
Whoops!
First of all - nothing to worry about, this is fixable.
What i would do is:
- Take care of the top part of the encoder first, which is stuck inside the jogwheel right now.
- There is a little screwhole on the joghweel that is keeping it in place
- You will need a hex screwdriver that can fit in there. (the size is around 1.2 - 1.4 i think)
- Once you unscrewed it, the encoder will come out easily
- Then you can put the top part of the encoder back into it‘s base
- use the 4 clamps (on the green part), to hold it in place.
- They bend so once you position the top on it, you can bend them inwards to fasten it
- Put the jogwheel cap back on it and screw it back in
That should do it! If something is unclear let me know.
2 Likes
youah ! thank you so much.
I am going to do what you say and keep you inform.
thanks once more !
